Industrial Silos
Our Industrial line of silos are engineered for the storage of dry bulk products such as cement, plastics, flour, sugar, resins, slag, fly ash, and lime, and liquid products such as water, liquid fertilizer and molasses. Working from our shop in Atwood, Ontario, over the past 50 years Smith Steel & Fabrication has earned a reputation for quality design, fabrication and creative solutions.View More Information View Inventory
Standard Features Industrial Tanks are Fully Customizable
- Caged ladder
- Top railing
- Inside ladder
- Sealed manway
- Fill pipe assembly
- Pressure relief valves
- Available with drive through and non drive
- through leg extensions
- Two compartment silos
- Service platform
- 12-aeration diffusers
- Lifting lugs
- Manual shut off slide
- Outlet flange
- Butterfly valve c/w air actuator
- Two level bindicators
- Painted with Epoxy in multitude of
- colours
- Special painting/epoxy/logos
- Larger sizes available

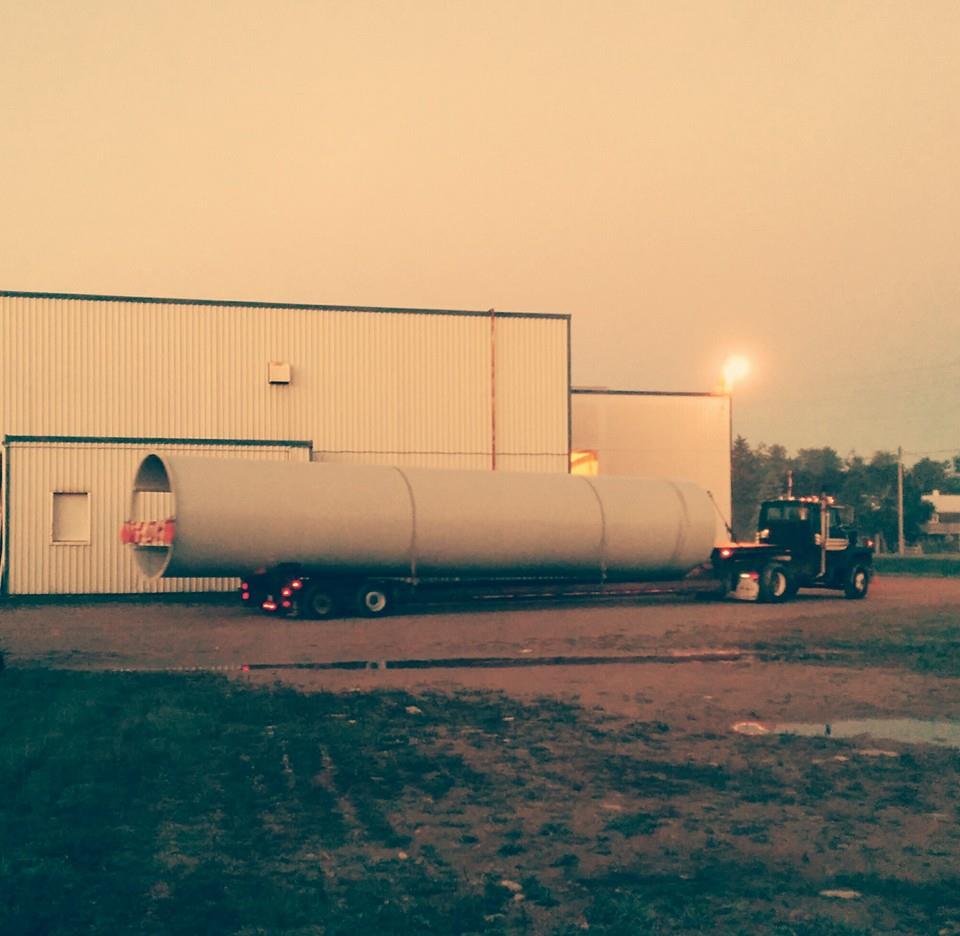

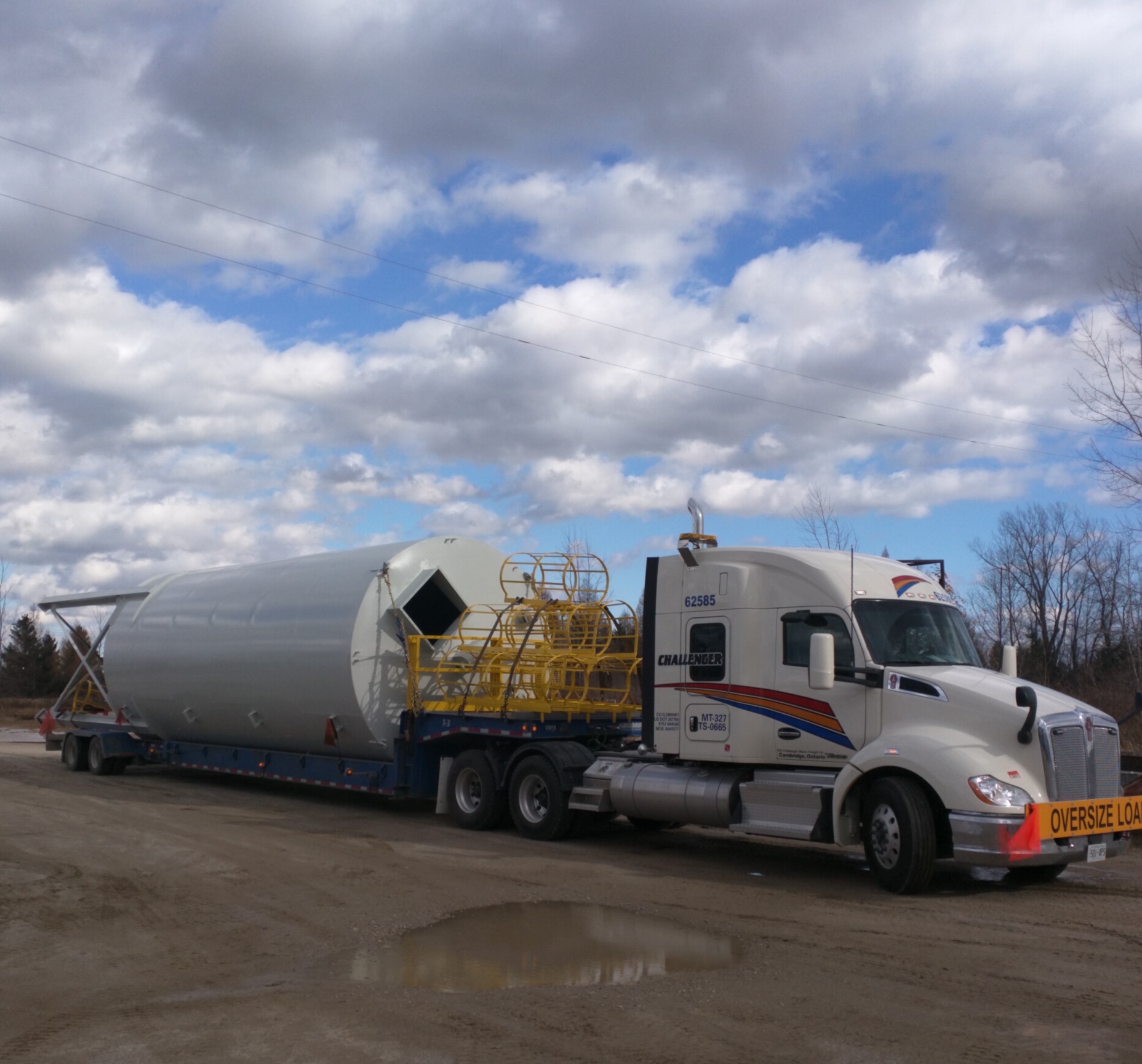

Heading out in early morning.
Off she goes.
Line of Smith Steel cement tanks at this plant.
All our tanks are hand welded in our shop in Atwood Ontario.
_1414175212.jpg)
Structure for a cement silo in the paint booth.

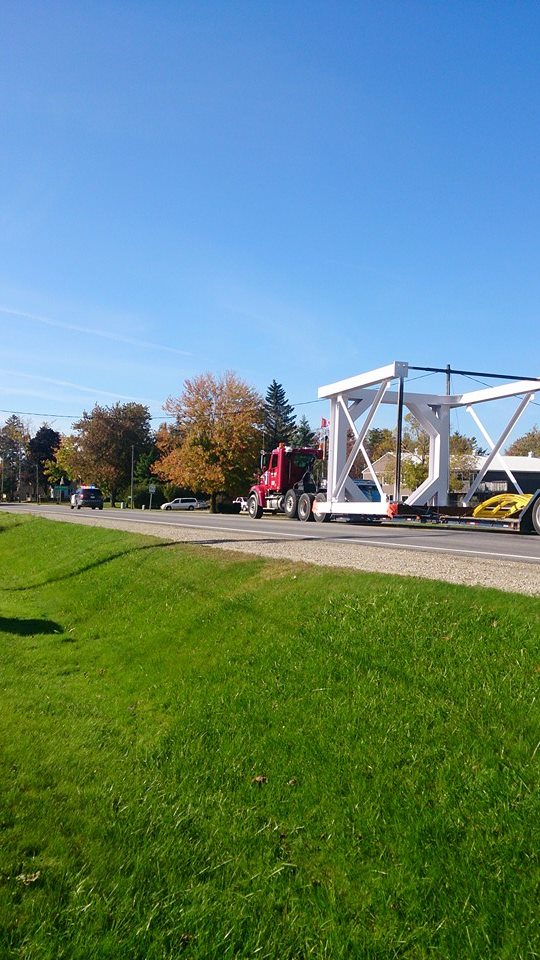

Structure headed out for delivery.
_1414175578.jpg)
This cement tank is loaded and ready to ship out.
Water tank
Square bin
Cement tank freshly painted
Drive through structure under this cement tank
Cement tank looks even better standing up

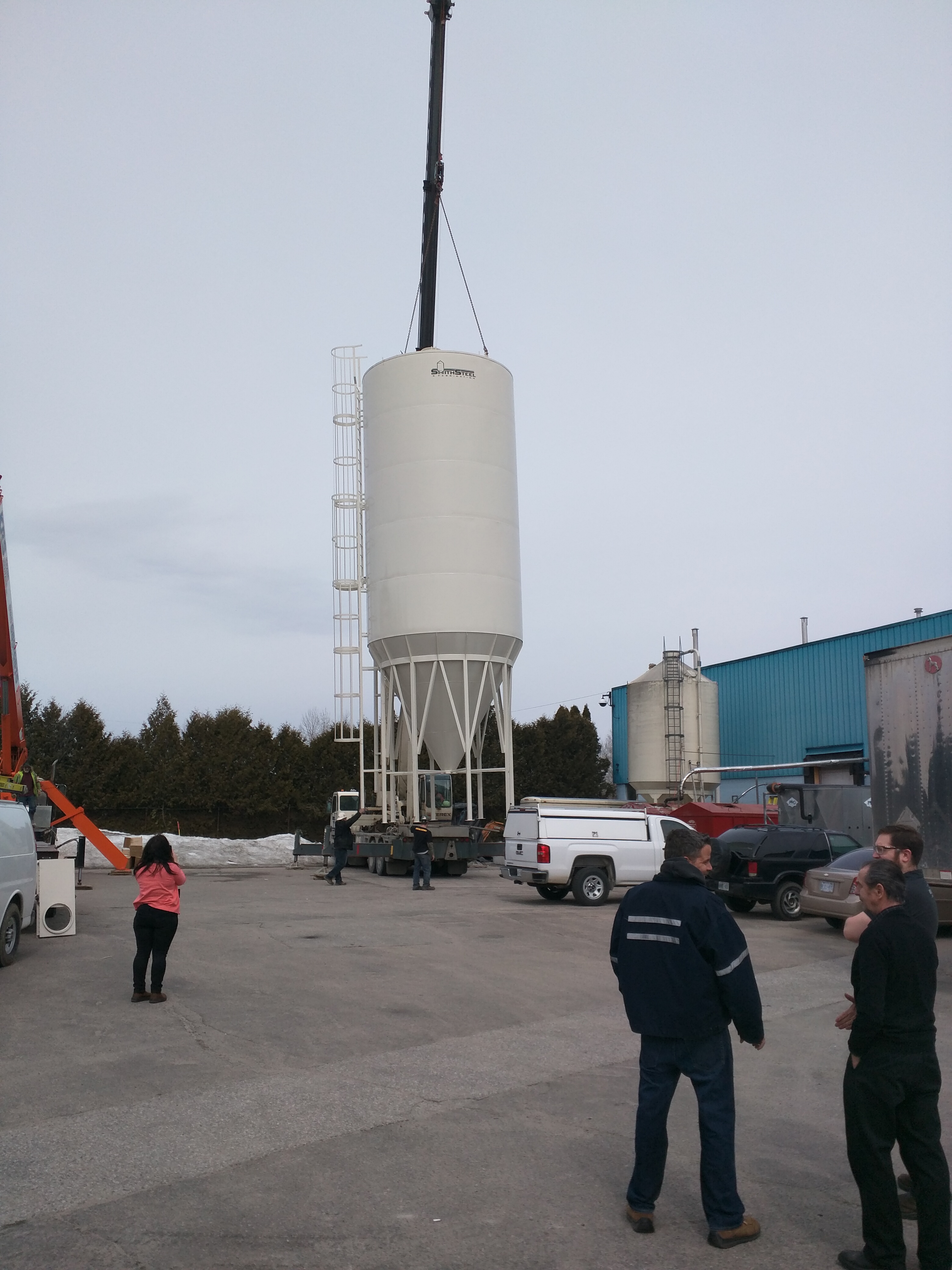

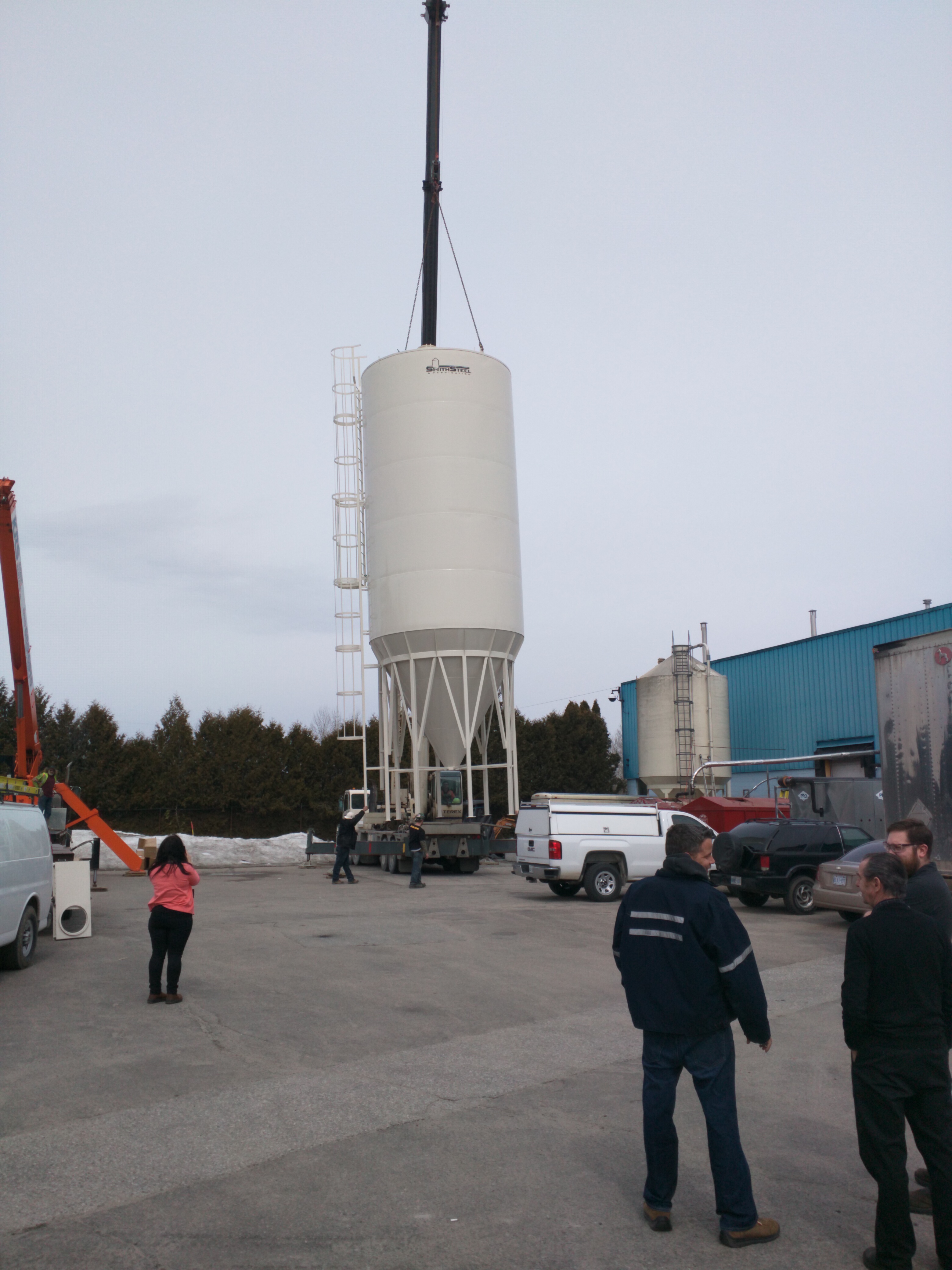

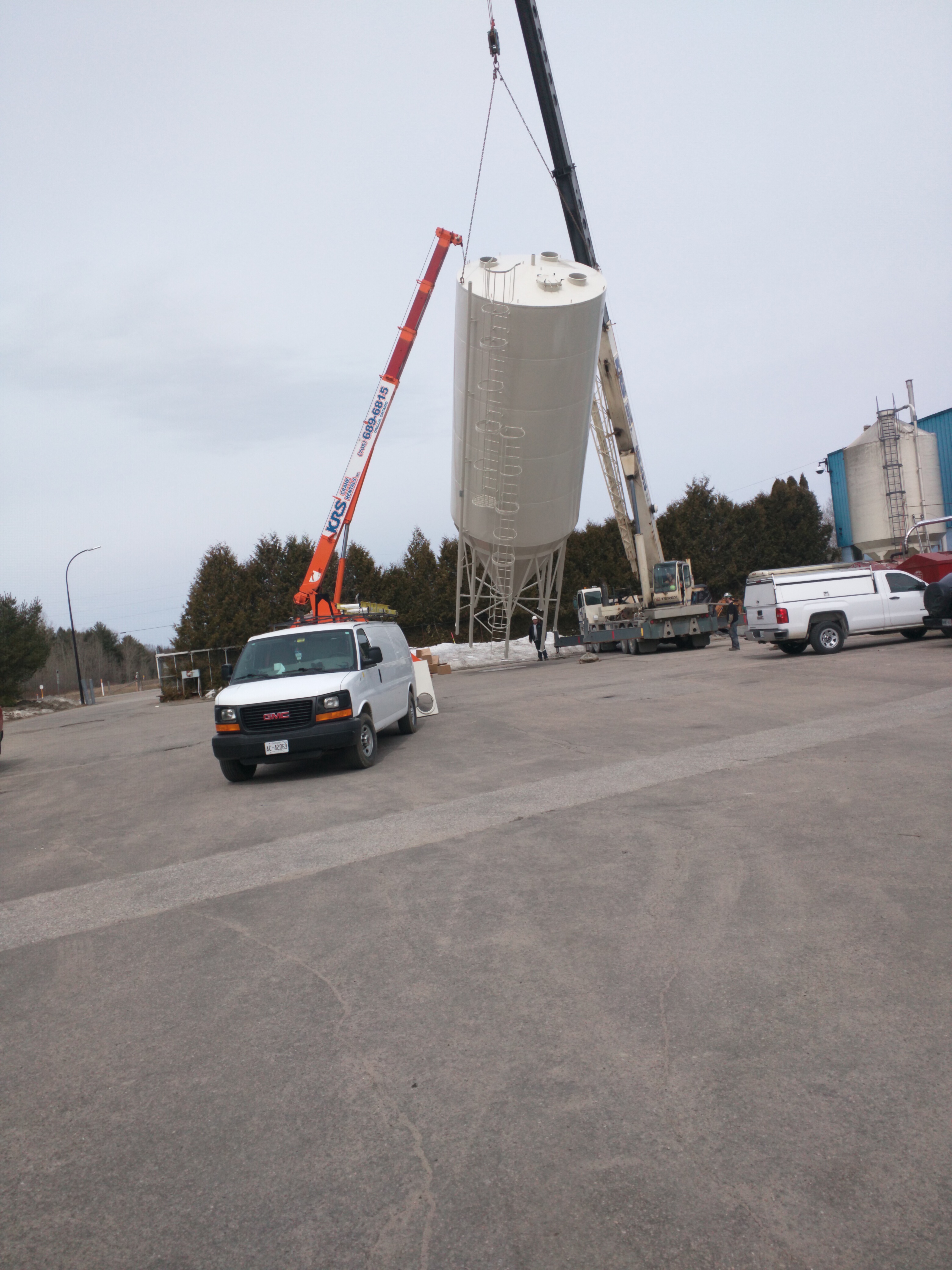

Silo being stood up

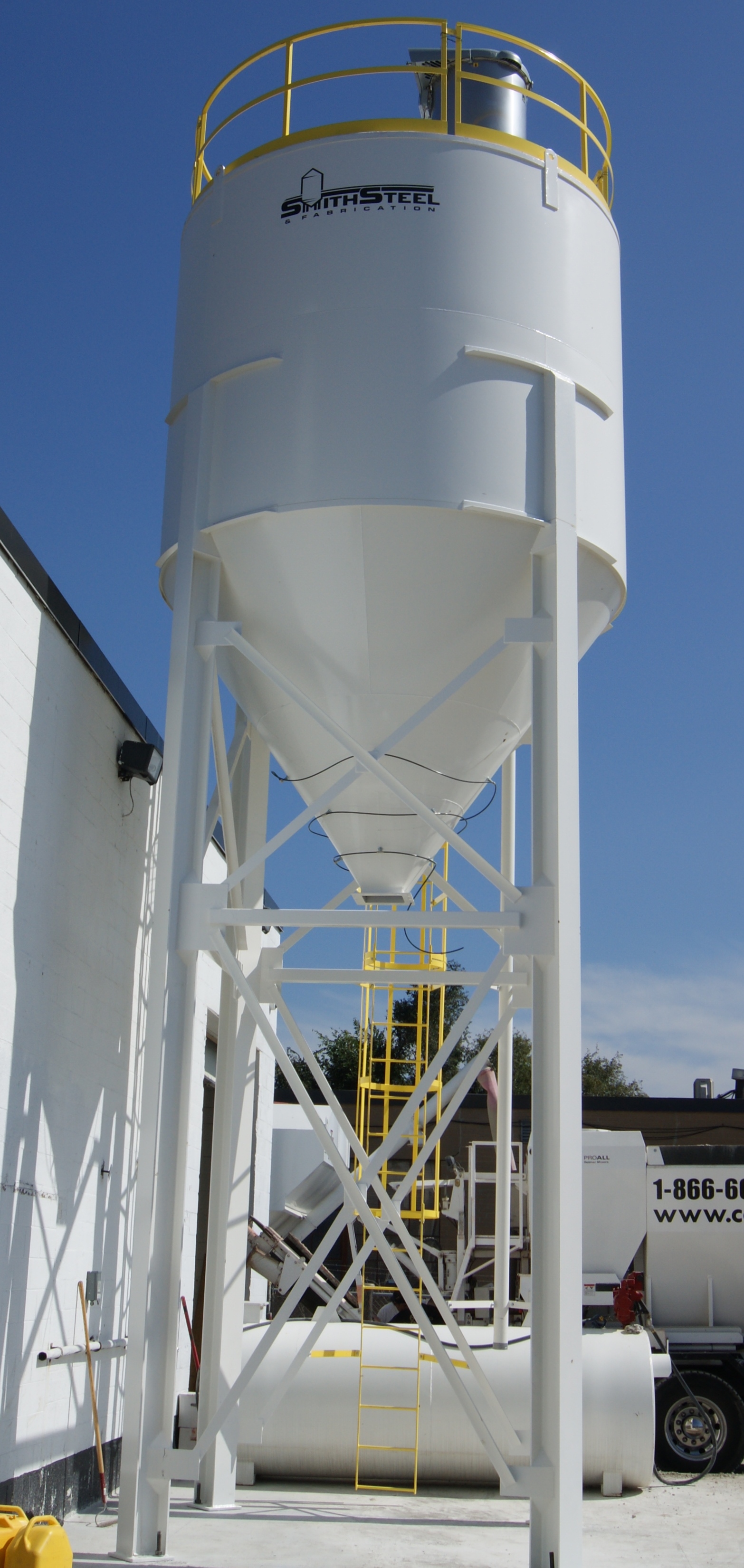

Cement silo

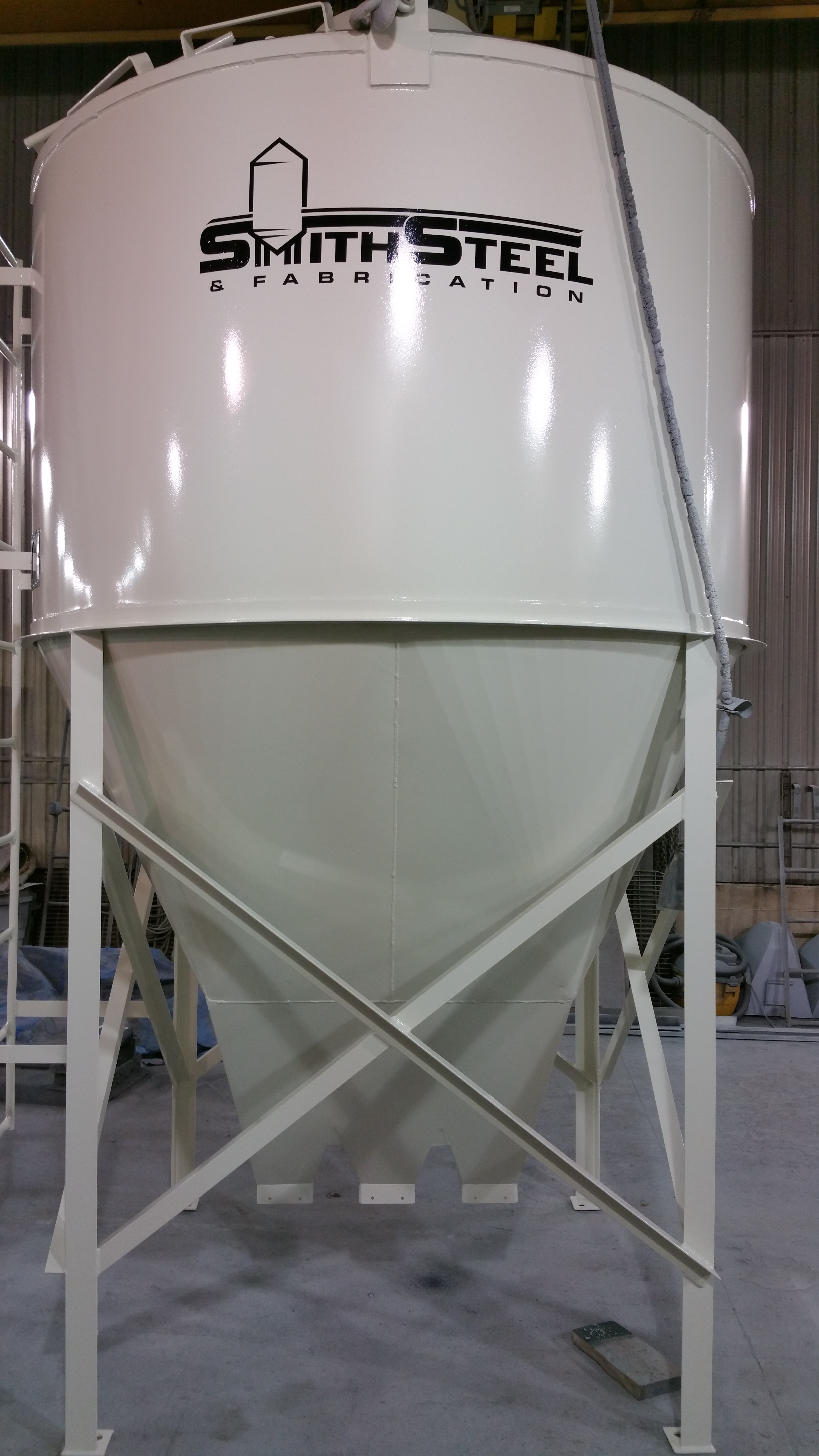

_1418046670.jpg)

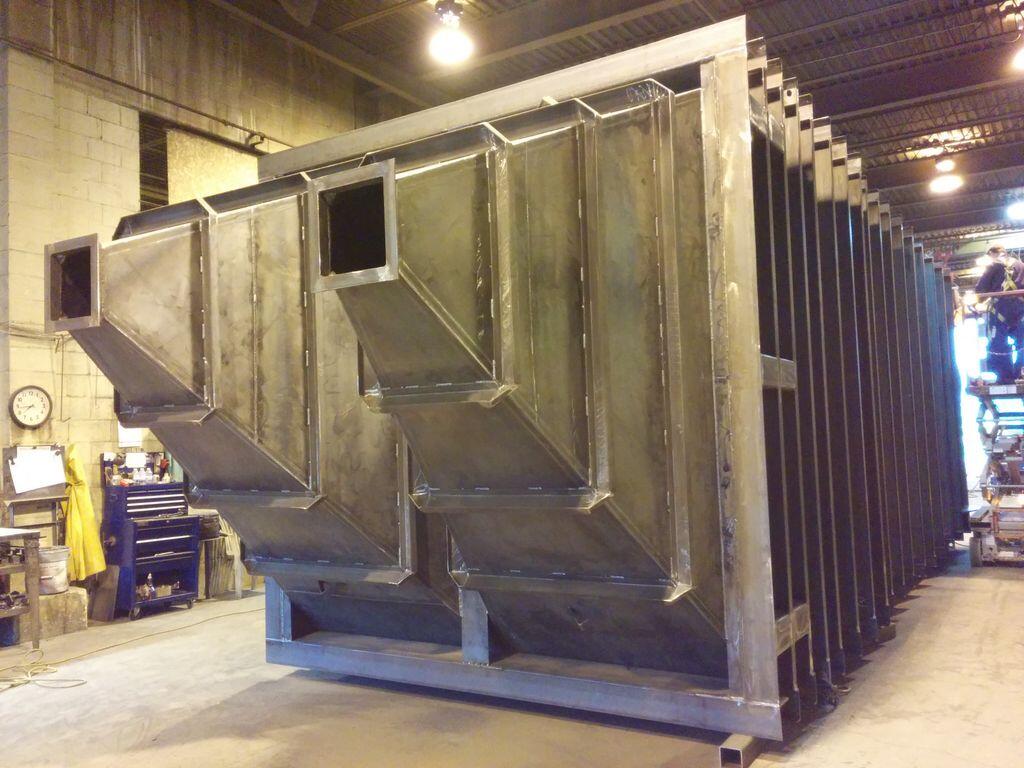

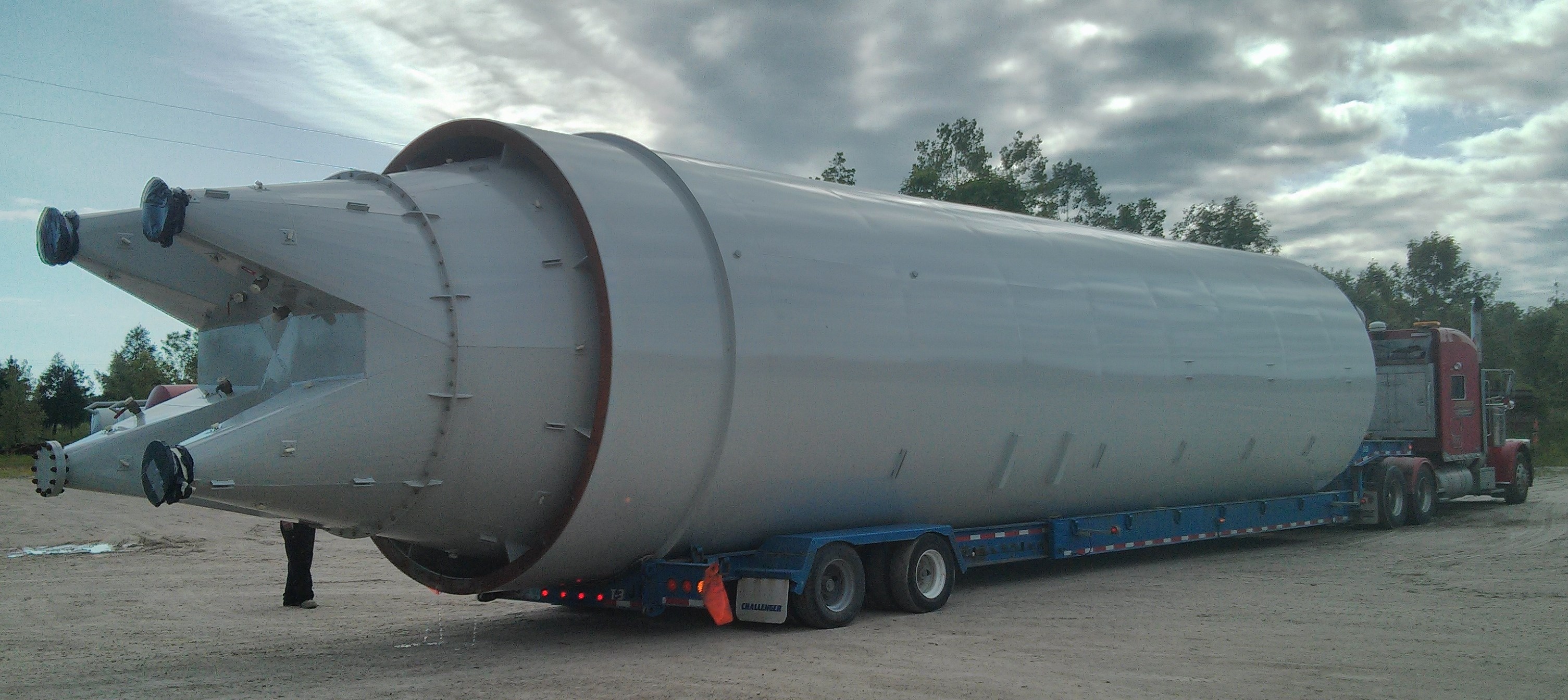

Specialized tank with three outlet hopper for turkey feed

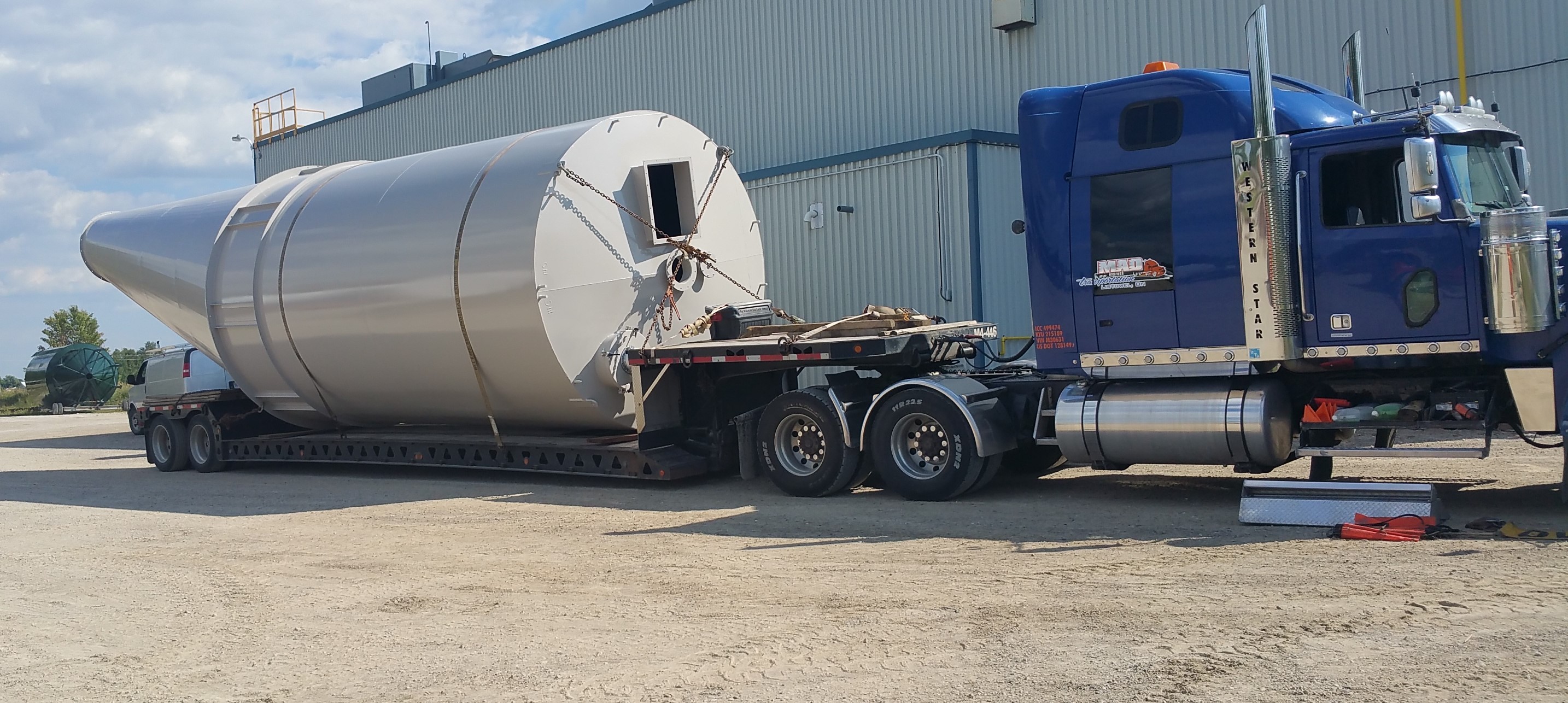

Cement silo ready to ship out

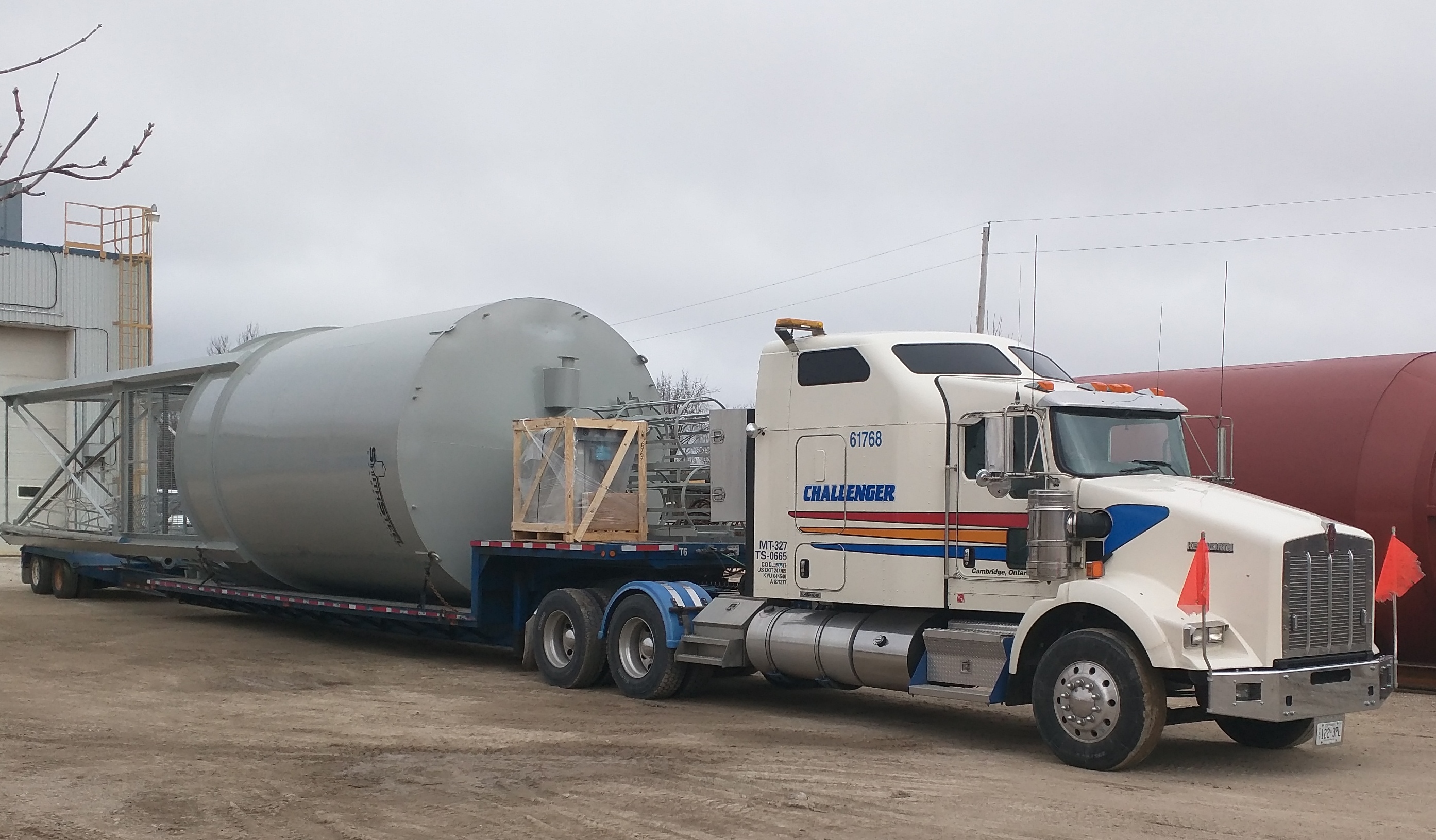

Cement silo loaded up for delivery
Silo for storage of beans ready for delivery
Bean silo in place
Tank for storage of lime heading to NY state.
Extra large hopper

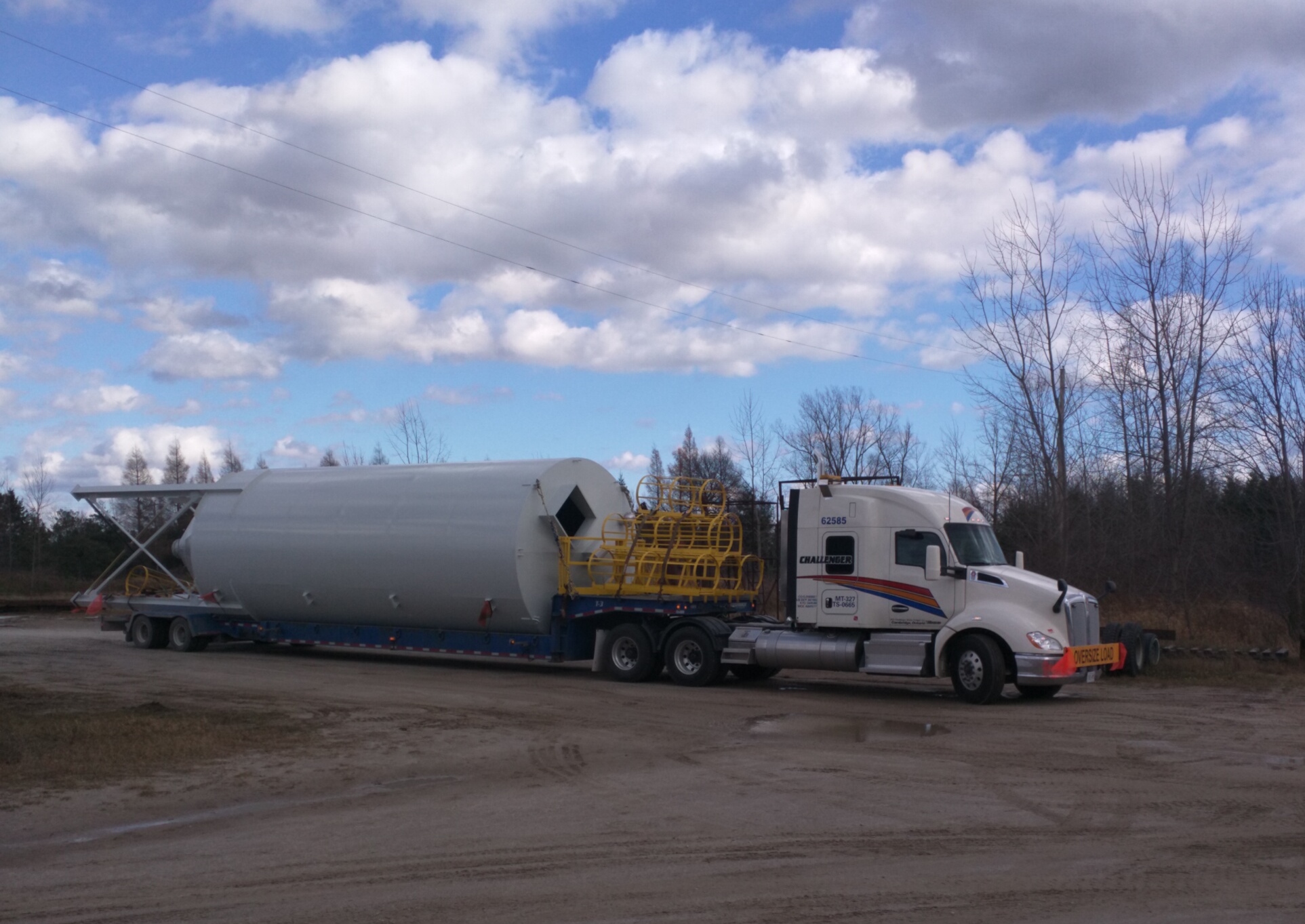

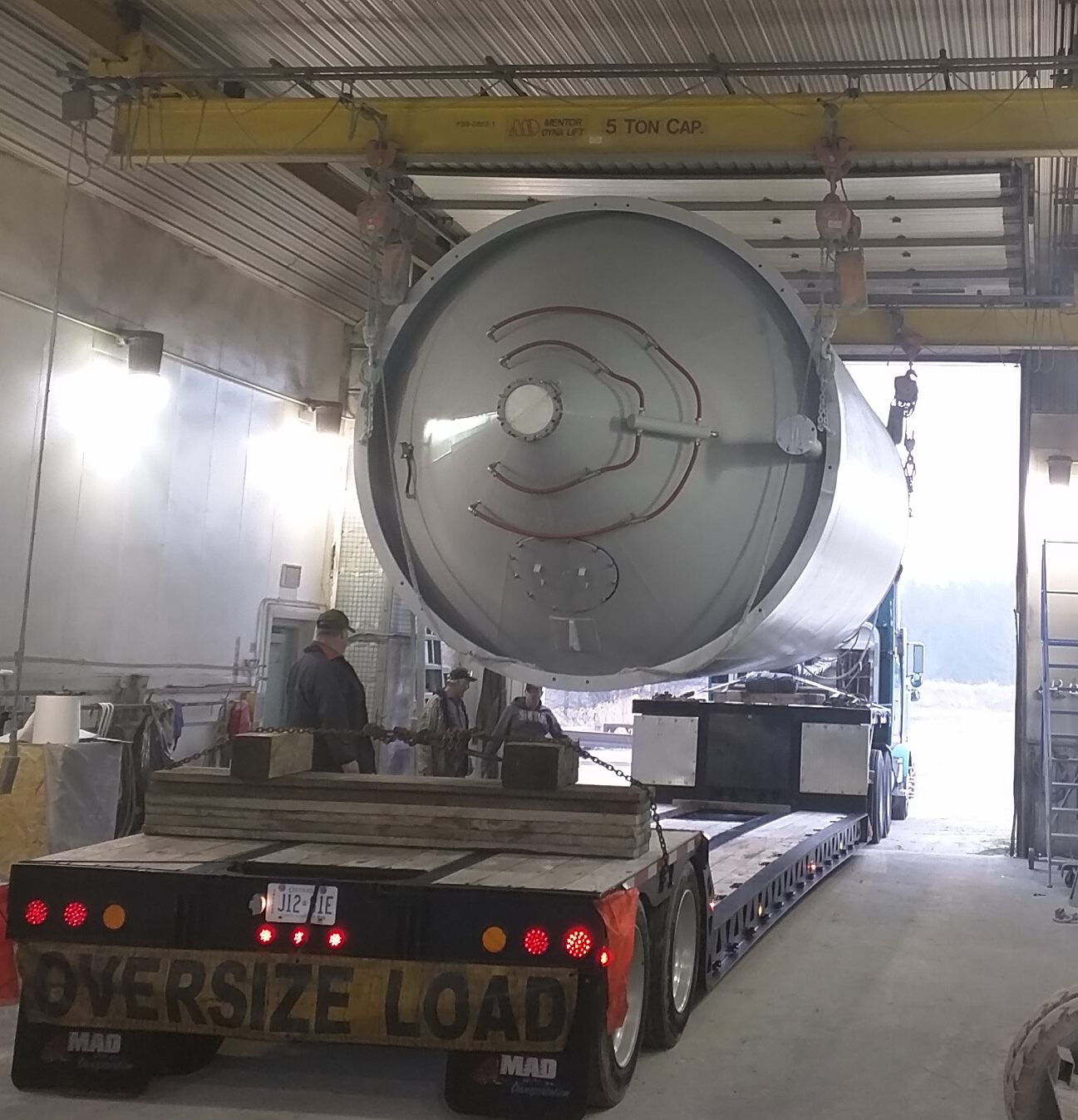

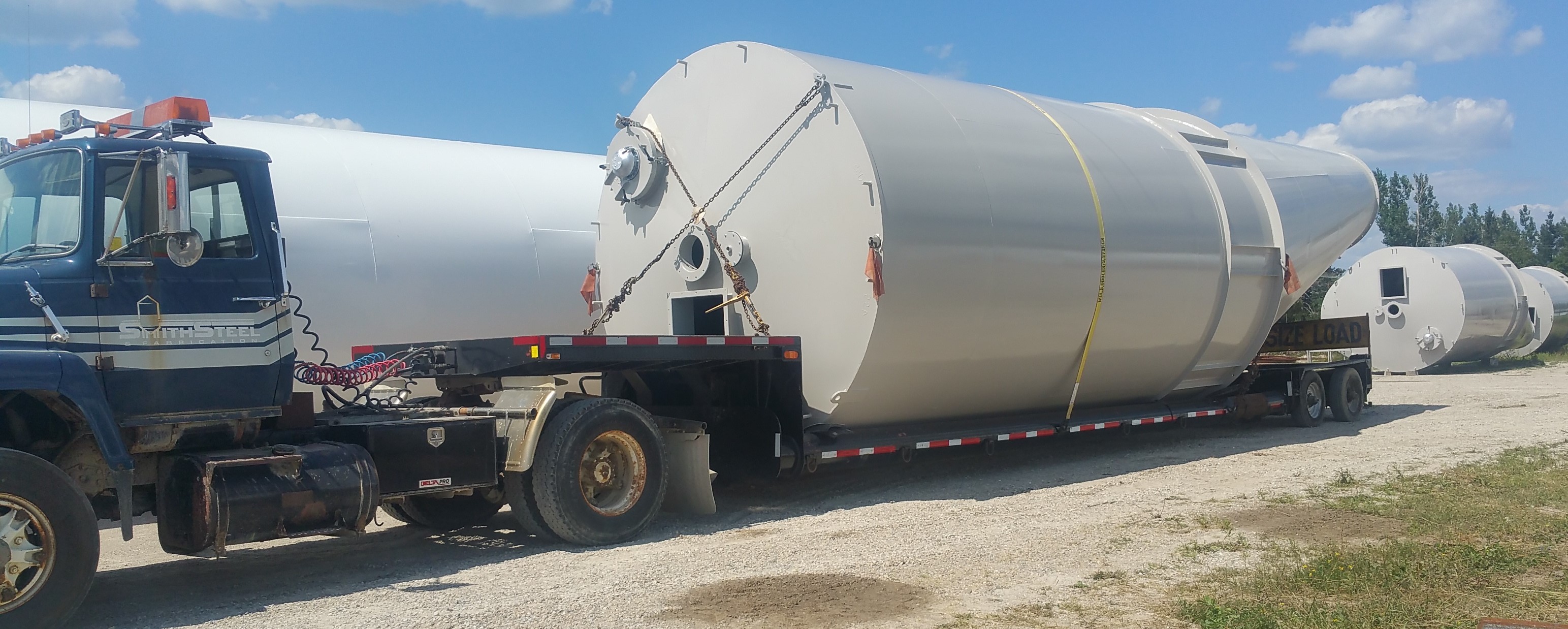

Industrial tank loaded for delivery.

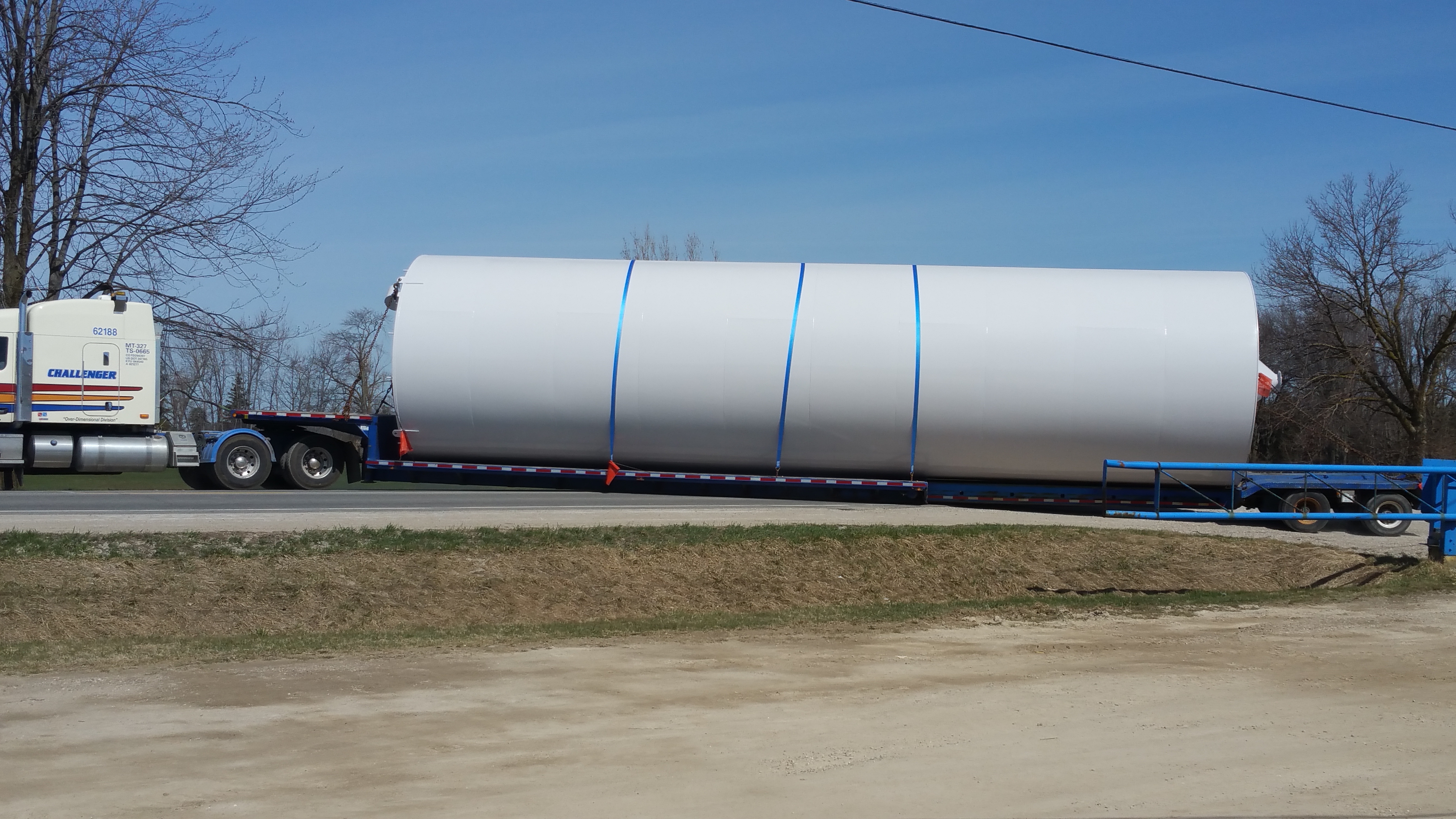

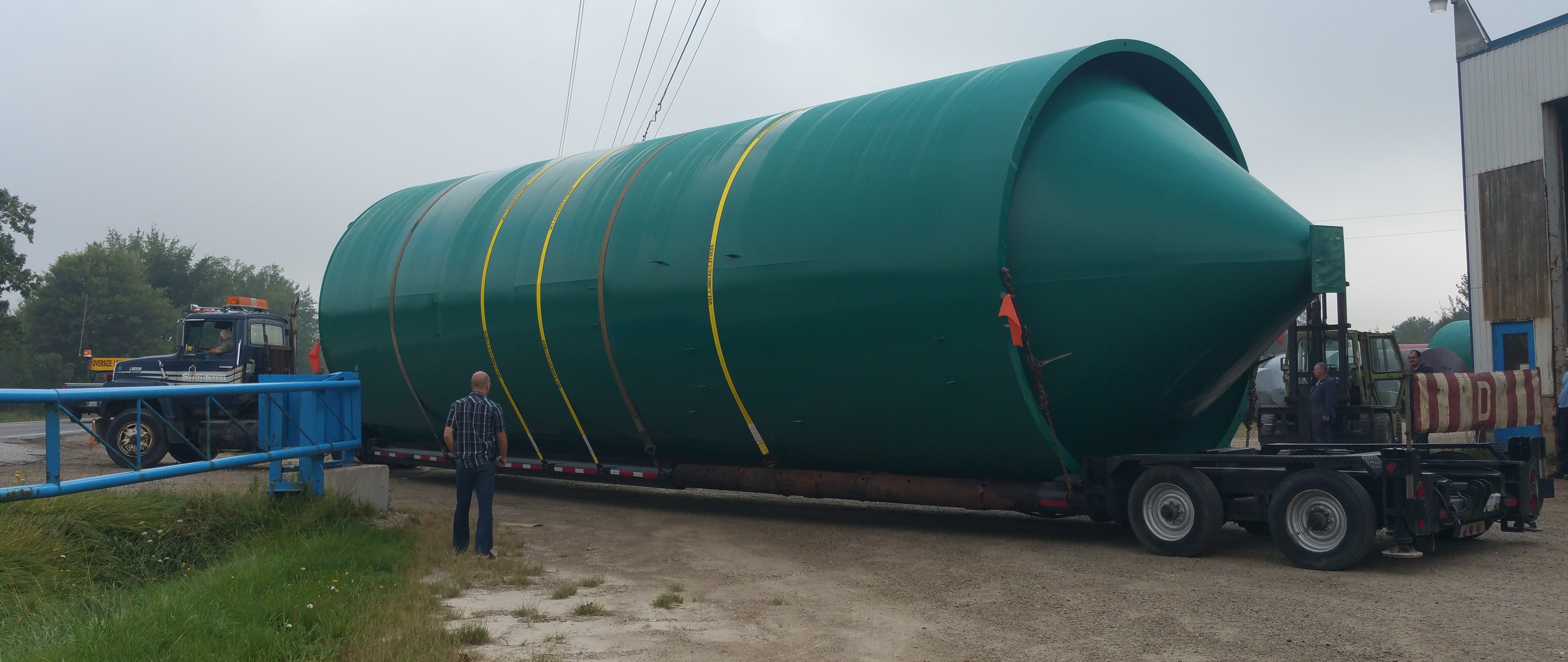

Cement silo heading out for delivery
Loading for delivery
Delivering cement silo
Sand silo delivery
Sand silo being delivered
This was built for a brewer in Muskoka
Industrial silo

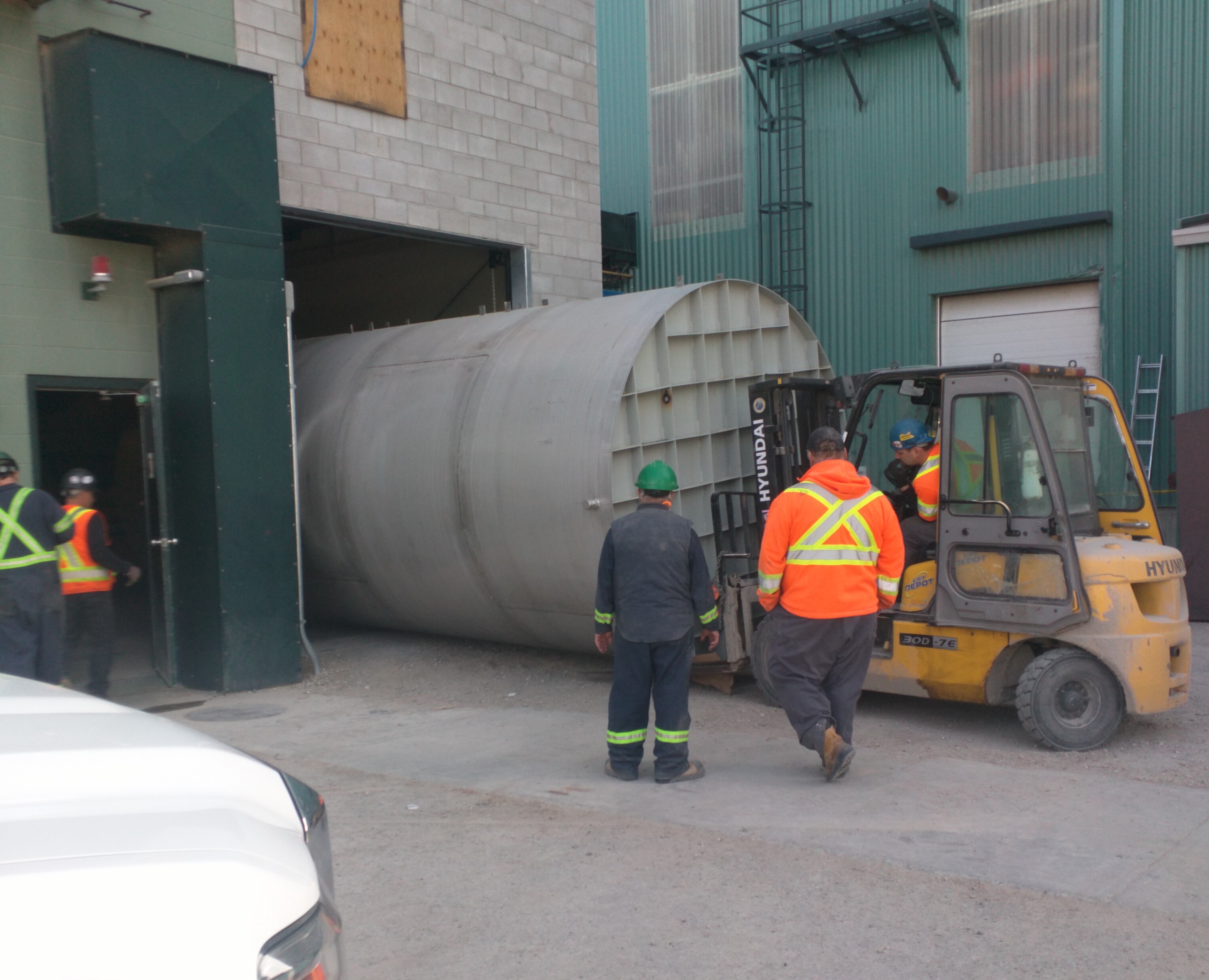

Tight fit but they got it in

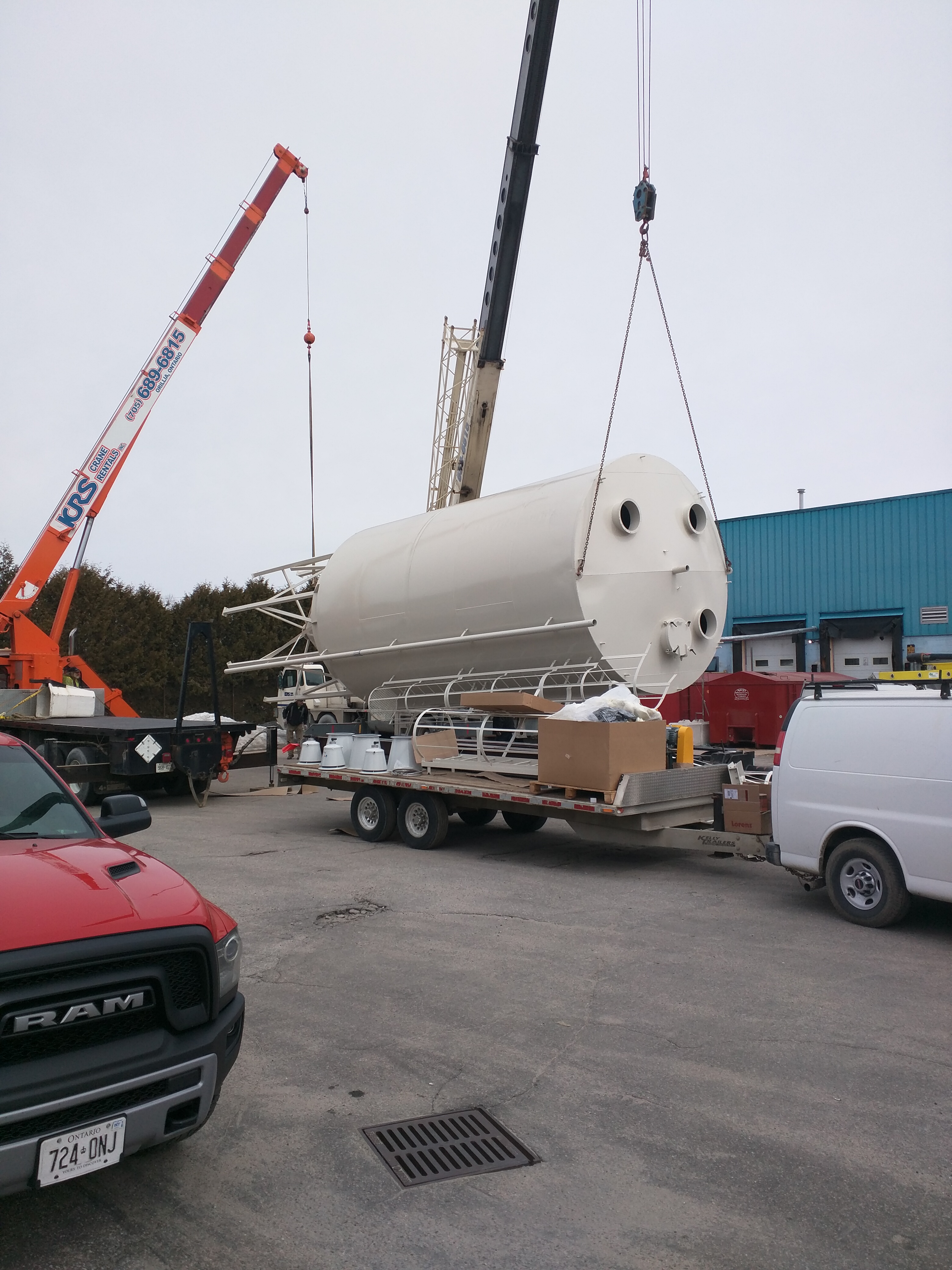

Offloading tank

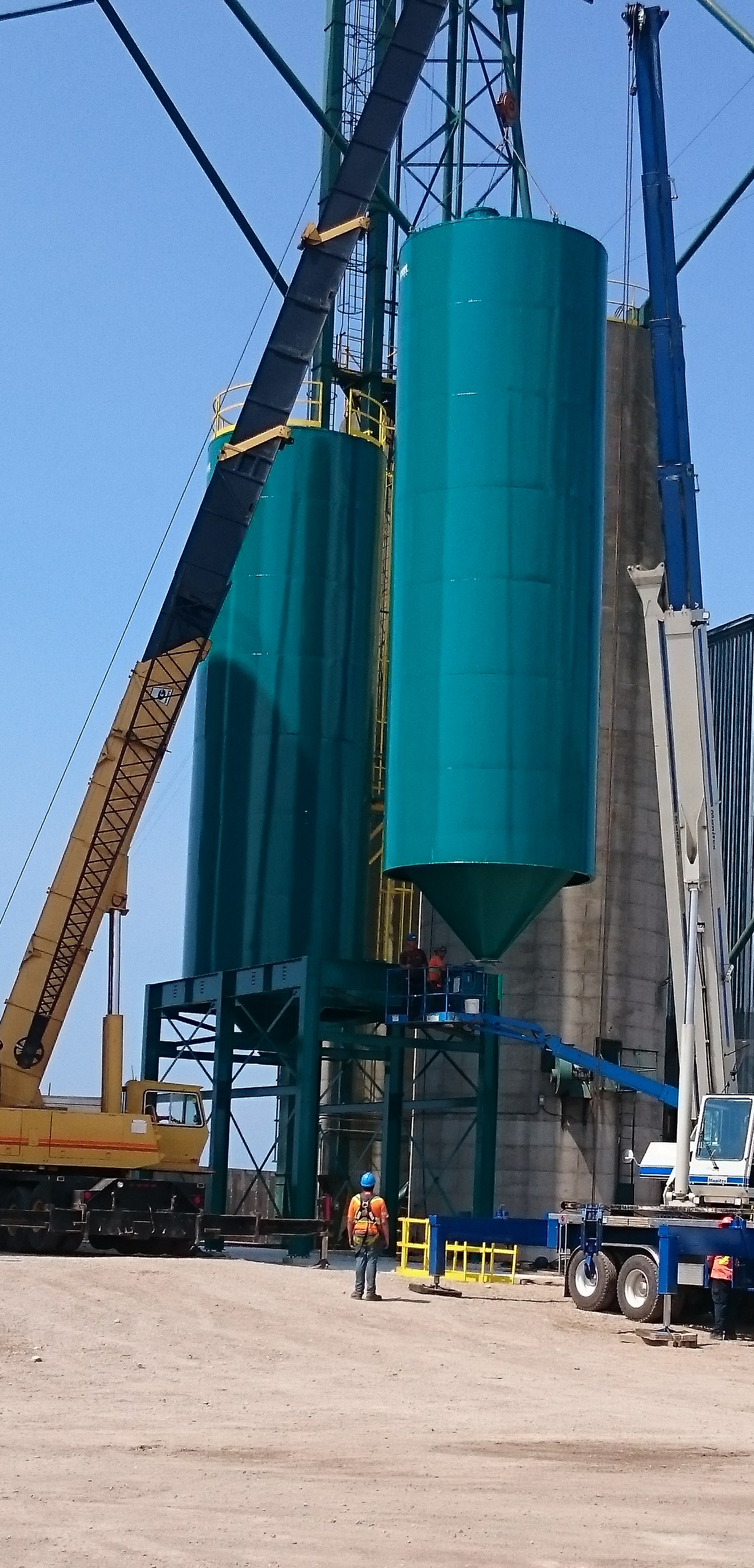

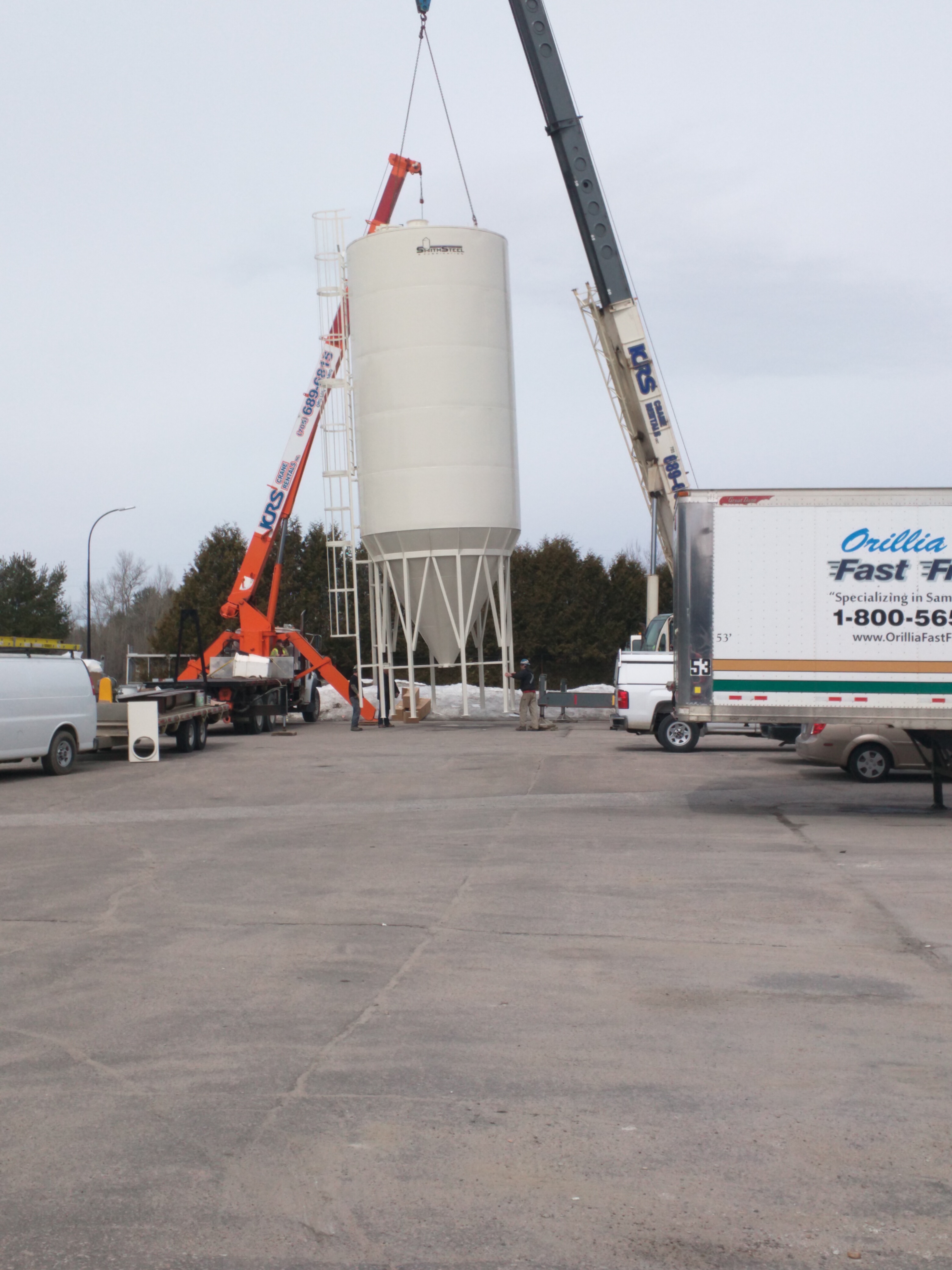

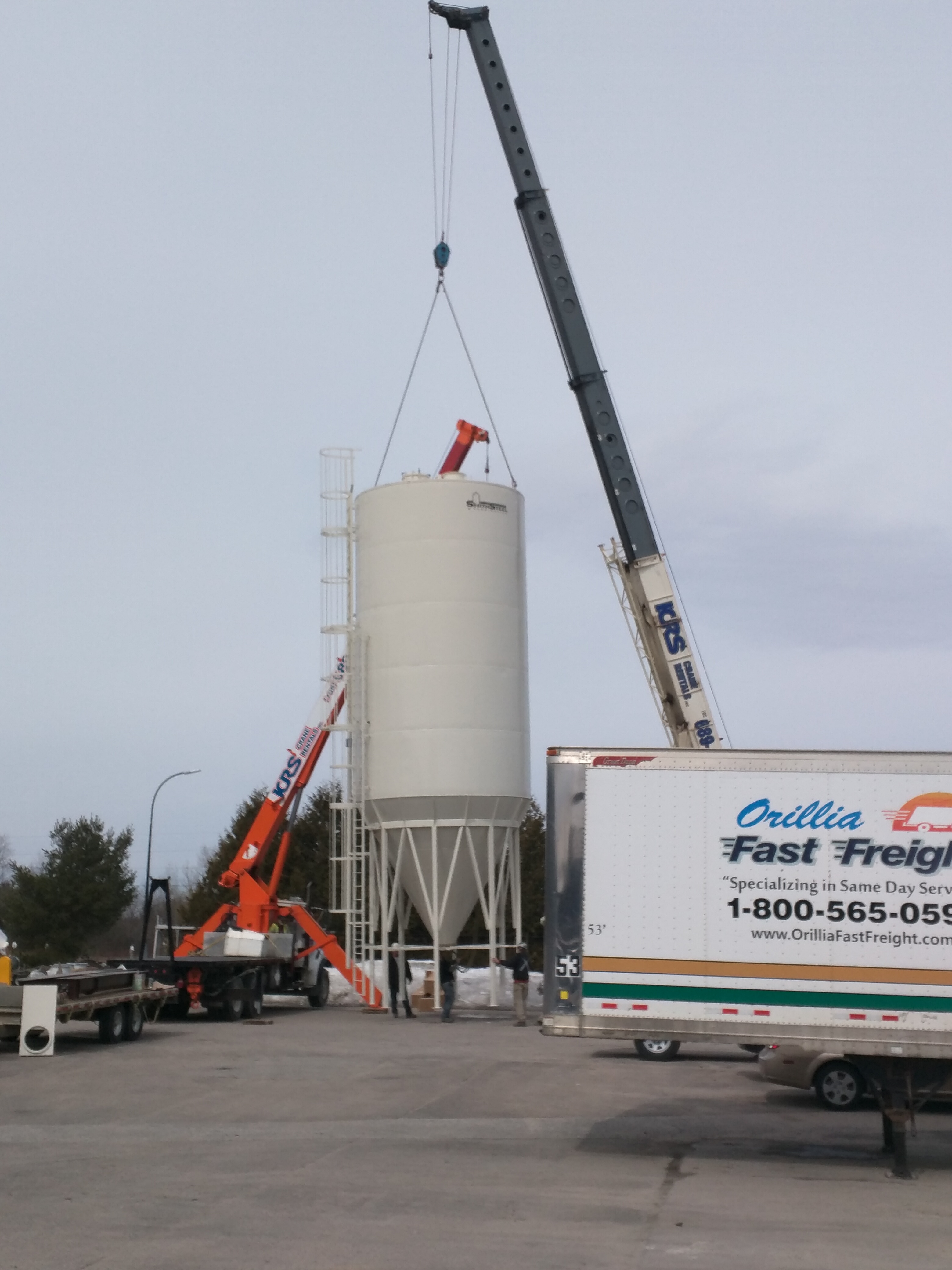

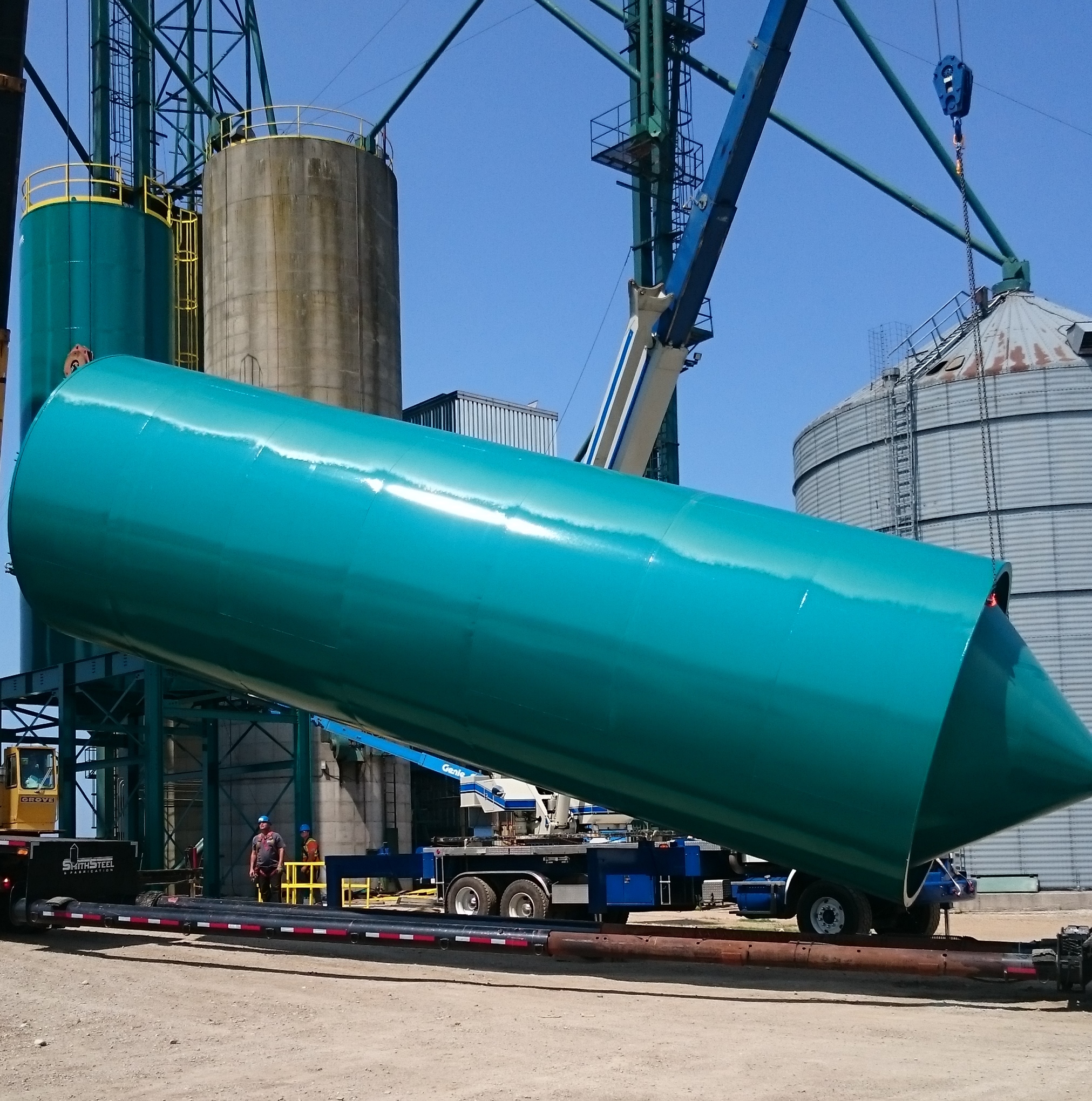

Standing up silo
Getting it in place
Sand silo
Long hopper on this ingrediant bin.

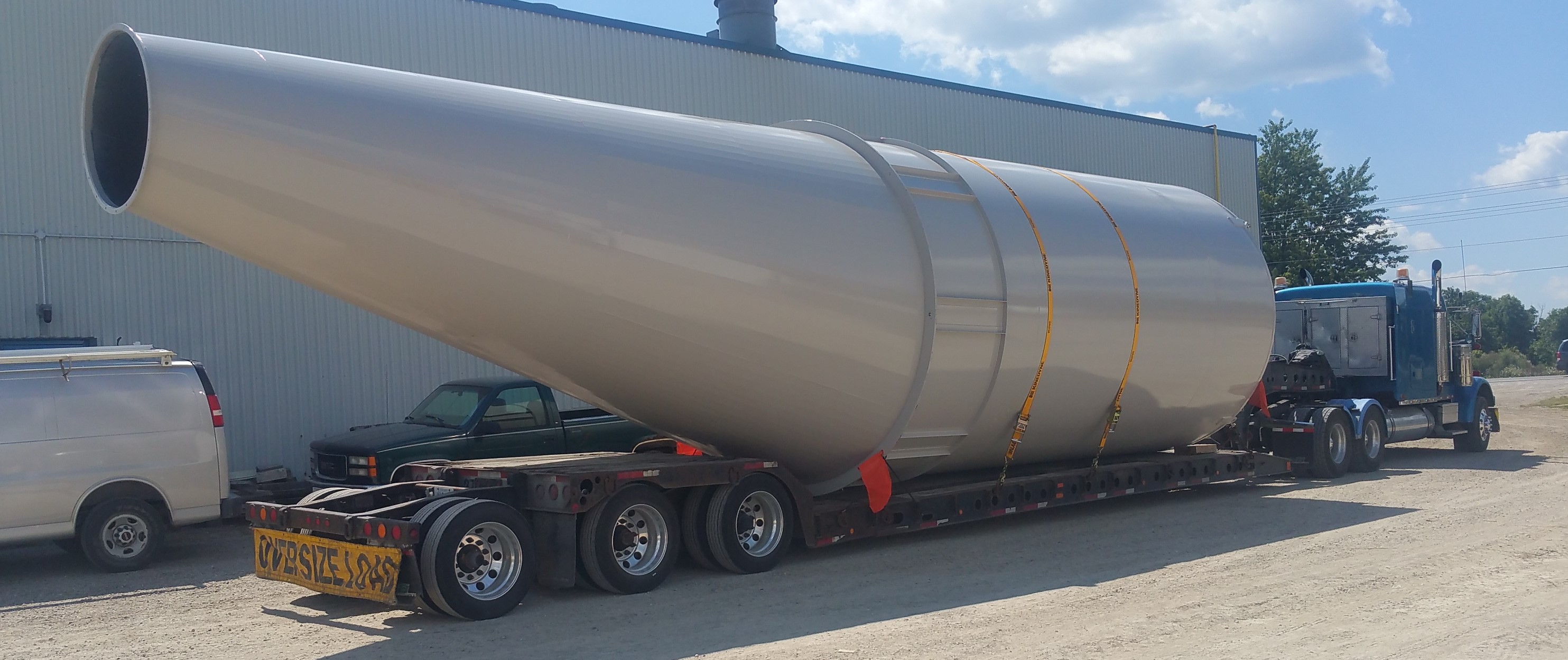

Shipping out an ingrediant bin with hopper in the air.
Ingrediant bin loaded and ready for shipping

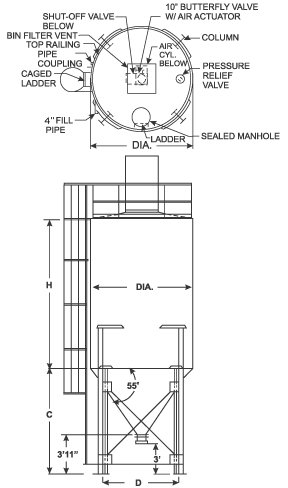

Standard Models
MODEL |
CAPACITY IN CUBIC FEET |
DIAMETER |
HEIGHT |
CLEARANCE |
WIDTH BETWEEN LEGS |
1010-39 |
970 |
10’ |
10’ |
10’6” |
7’1” |
1015-55 |
1360 |
10’ |
15’ |
10’6” |
7’1” |
1020-71 |
1750 |
10’ |
20’ |
10’6” |
8’6” |
1025-87 |
2150 |
10’ |
25’ |
10’6” |
8’6” |
1210-58 |
1450 |
12’ |
10’ |
12’ |
8’6” |
1215-82 |
2010 |
12’ |
15’ |
12’ |
8’6” |
1220-105 |
2580 |
12’ |
20’ |
12’ |
8’6” |
1225-127 |
3150 |
12’ |
25’ |
12’ |
8’6” |
1230-151 |
3710 |
12’ |
30’ |
12’ |
8’6” |
1235-174 |
4280 |
12’ |
35’ |
12’ |
8’6” |
